75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
| Tempat asal | Cina |
|---|---|
| Nama merek | OEM |
| Sertifikasi | CE |
| Nomor model | CHIC-50A |
| Kuantitas min Order | 500 |
| Harga | USD 40-45 |
| Kemasan rincian | ukuran kemasan (L × W × H): 1300mm × 850mm × 1210mm |
| Waktu pengiriman | 7 hari |
| Menyediakan kemampuan | 500 PCS / HARI |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama | 75kw 100hp CHIC-100A Direct Driven Digunakan Kompresor Udara Sekrup Putar | Pengiriman Udara | 13.0m³ / menit |
|---|---|---|---|
| listrik | Tiga fase 380/60 atau 440/60 (V // Hz) | Tekanan | 8bar |
| Tingkat kebisingan | 75 ± 2dB | kekuasaan | 100HP / 75KW |
| N. menimbang | 1500kgs | Warna | Biru |
| Menyoroti | 75kw portable screw compressor,75dB portable screw compressor,75dB industrial screw compressor |
||
Deskripsi Produk
Cooler fan
High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period
EXHAUST
The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space
High performance frequency converter
Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery
PLC
7-inch color screen ,touch operation be equipped with active protection alarming , maintenance reminding and automatic 24-hour unattended operation
Technical parameters
| Model | CHIC-100A | ||
| Power | 100HP/75KW | ||
| FAD: (M3/MIN) | 13.0 | ||
| Pressure | 8 bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 36L | ||
| Noise level | 68±2dB | ||

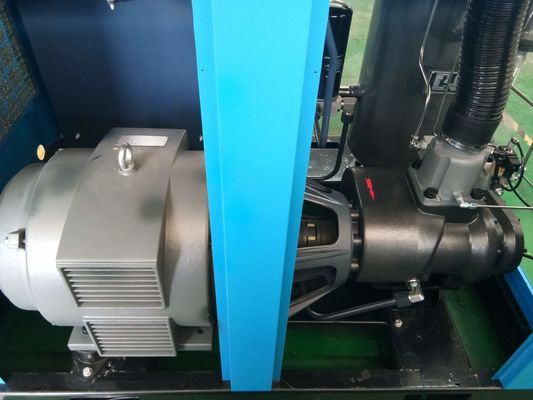

| Drive method | Direct drive type | ||
| Discharge temperature | Environment Temp+15℃-18℃ | ||
| Electricity | Three phase 220/60 or 440/60 (V//Hz) | ||
| Starting method | Y-△ starter | ||
| Air outlet: Pipe diameter(inch) |
G2″ |
||
| Oil content of air | <2ppm | ||
| Dimension | 1150MM*1550MM*1660MM | ||
| Net weight | 1500KGS | ||
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
